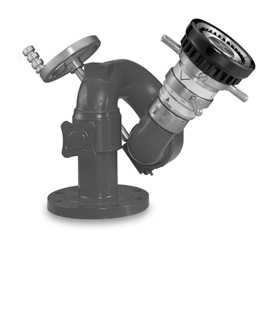

#539 Single Waterway Monitor
- Corrosion resistant brass construction.
- Full 360° horizontal travel with friction locking mechanism.
- 150° vertical travel 90° above to 60° below horizontal.
- 3" single waterway with turning vanes at each elbow provides flow efficiency, 1250 GPM.
- A double row of ball bearings in the swivel for smooth operation.
- Suitable for use in corrosive atmosphere that requires all brass monitor.
- Standard unit painted red.
- Selection of 3" or 4" ANSI 150# flange for inlet
|
|
|
|
|
|
|
|
